Product introduction:
1.Furnace wall automatic type is suitable for glass fiber and other glass furnace
2.Probe hood enter furnace wall, the thickness of furnace wall less than 500mm

3.The probe cover is made of stainless steel with good corrosion resistance

4.Special dust proof design, the lens does not gather dust
5.Special water cooling, under the condition of poor water quality can normally use
6.The high temperature pin hole zoom lens Independent development and design,horizontal resolution is greater than 2.0 million pixels, under no cooling condition, it can with stand 350℃
7.Probe hood can enter and exit automatically
8.Using high-temperature air cylinder, with good reliability
9.When water cooling or power supply have unforeseen circumstances, probe hood can exit automatically
10.In the central control room or at site can control the equipment to enter and exit
11.By DCS can control the equipment to enter and exit
12.Using manual zoom high temperature pinhole lens can satisfy different furnace, different product requirements
13.Using electric zoom high temperature pinhole lens can remote control the size and the clarity of image

Main function Probe will exit:
1. Hood temperature over 55℃
2. Compressed air input pressure below 0.3MPa
3.Cooling water input flow is less than 5L/min
4.Power cut off
5.The control room or control device of site send out exit signal

Technical parameters:
1.Lens definition:horizontal resolution is greater than 2.0 million pixels
2.Lens variable focusing: F4-F20 continuously adjustable
3.Exit distance: 500mm

Compressed air:
1.Total intake pipe: G3/4”
2.Connecting pipe:  2-G1/2”(increase stop valve)
3.Inlet pressure: 0.2MPa～0.5MPa
4.Inlet temperature: ≤35°C
5.Minimum flow: 0.3M³/min

Cooling water:
1.Total intake pipe: G1/2”
2.Connecting pipe:  G1/2”
3.Inlet pressure: 0.2MPa～0.5MPa
4.Minimum flow: 30L/min
5.Inlet temperature: ≤35°C

Working condition temperature:
1.Control box: -20°C～75°C
2.Furnace temperature: ≦2000°C(continuous duty)

Dimension:

1. Handle exit device: 1500*380*350mm

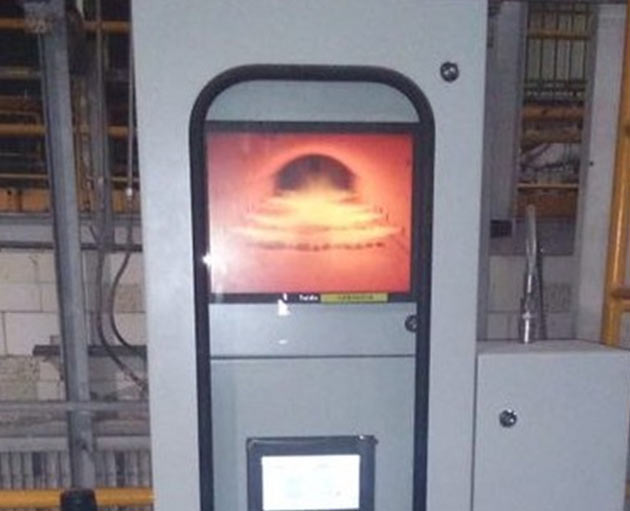

2. Control box: 700*1200*280mm(width*height*thickness).
3. Manipulator (there are three type, if you need to order it please specify).
3-1  Software operation (see figure).
3-2  Flush mounting (see figure).
3-3  Cabinet mounting or place on the operating desk (see figure).

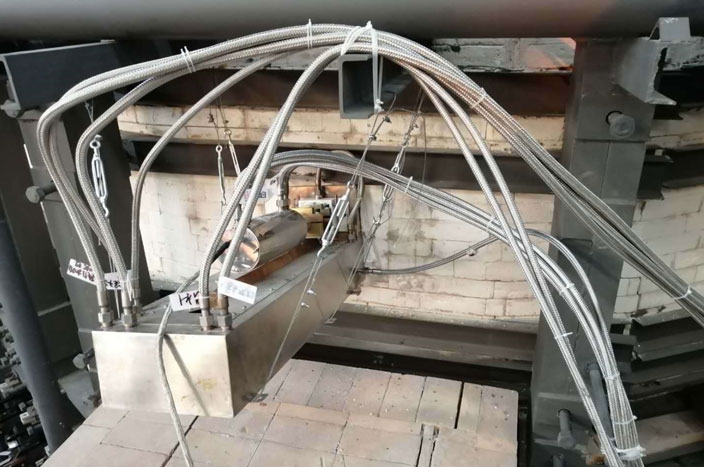

4. Installation diagram: (see figure ).
5. Open pore requirement (see figure).
