Product introduction:

1.The stainless steel material is designed with four layers of protection, the middle layer is filled with water, and the outer layer is filled with refractory cotton, so as to minimize the damage to the temperature field in the furnace

2. Through high temperature to 90 degrees zoom pinhole lens along the workpiece movement direction observation, more intuitive, more comprehensive in the reactor of the 3. Specific conditions of the probe cover adopt stainless steel material, good heat resistance corrosion resistance
4. Special dustproof design, the lens is not easy to accumulate dust
5. Special water cooling design for normal use under poor water quality conditions
6. Self-developed and produced high temperature pinhole zoom lens with a horizontal resolution of more than 2 million pixels and a temperature resistance of 150 degrees

7. Manual zoom lens with high temperature can be selected to meet the observation requirements of different kilns and different production processes

8. Manual electric rotating device can be equipped to realize the whole furnace observation

9. Control the advance and retreat of equipment through DCS

10. High temperature lens zoom: Adjustable F4-F20 zoom

11. Signal-to-noise ratio: not less than 56dB

12. Resolution: higher than 2 million pixels Sensitivity: 0.0002Lx(F1.4)

13. Reaction time: 1ms
14. Dust: < 200g/m
15. Noise: < 150dB
16. Trouble-free time: 25000
17. Operating voltage: AC220V frequency: 50HZ

18. Power consumed: 120W
19. Protection level: IP65

Camera parameters:

1.High temperature lens zooming: F4-F20 zooming adjustable
2.Scanning mode: PAL system 625 lines / 50 fields
3.Video output: 1Vp-p synchronization positive polarity 75Ω
4.Signal Noise Ratio: ≥42db
5.System picture quality: level 5(normal condition)
6.Brightness identification level: ≥8
7.Definition: exceed 720 lines
8.Sensitiveness: 0.0002Lx(F1.4)
9. Reaction time: 1ms

Compressed air:
1.Connecting pipe: G3/4” or G1/2”(increase stop valve)
2.Inlet pressure: 0.3MPa～0.7MPa
3.Inlet temperature: ≤35°C
4.Minimum flow: 0.68m³/min(1m³=1000L)

Cooling water:

1.Connecting pipe: G3/4” or G1/2”(increase stop valve)
2.Inlet pressure:0.2MPa～0.4MPa

3. Inlet temperature:≤35°C

4. Minimum flow:≥20L/min(1m³=1000L)

5. Environment temperature：-20℃～75℃

6. Furance temperature: ≤1500℃（continuous use）

Dimension:

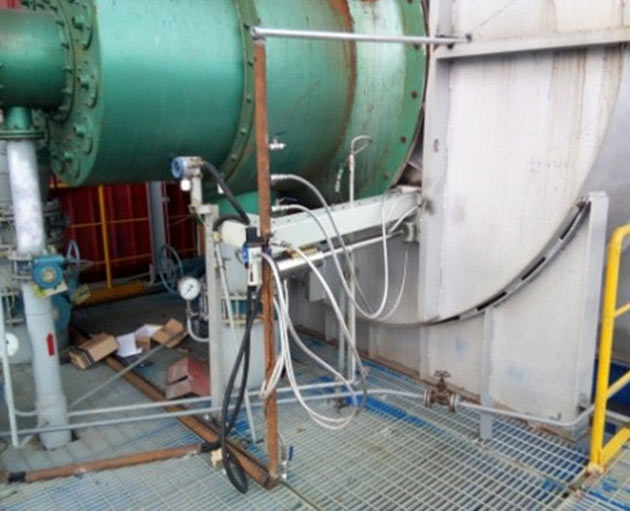

Automatic exit device: 1500×400×305mm
Field control box: 400×500×200mm (W*H*T)
