Product introduction:

1. Suitable for all kinds of high temperature boiler water gauge monitoring
2. All-weather cast iron seal shield, built-in LED lights, all-weather chromatic aberration hd display

2. Special prism design
4. Special cabinet design enables the equipment to be used normally under   various harsh conditions
5. The equipment can be controlled in the central control room/field
6. All-weather black box water level monitoring
7. Use mirror reflection and hood to ensure clear video
8. The image is not disturbed by external light
9. Monitor terminal display with dual screen synthesis and switching functions

10. Place and remote control focus doubling functions, such as high temperature, also with heat sink
11. The water level of the drum gauge can be displayed separately on the same screen through the switching device
12. Equipped with color digital HD camera
13.The camera directly cameras the two-color water level gauge, and then the water level in the light hole of the water level gauge can be seen on the monitoring screen of the control room, which can be distinguished by steam, red water and green water
14. Help operators to master the situation of drum water level. Operators can observe the situation of drum water level on the spot.

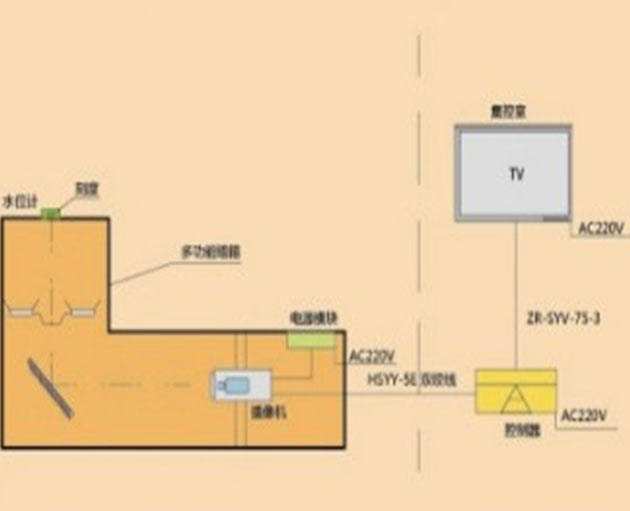

15. (both ends and the tail) by a camera probe, (including a digital HD camera; Stainless steel shield)
16.Fixing the cradle head, mounting bracket, shading and dust proof cover, local control counter
17.Components of super six network cables, optical cables, Ethernet switches and power cables

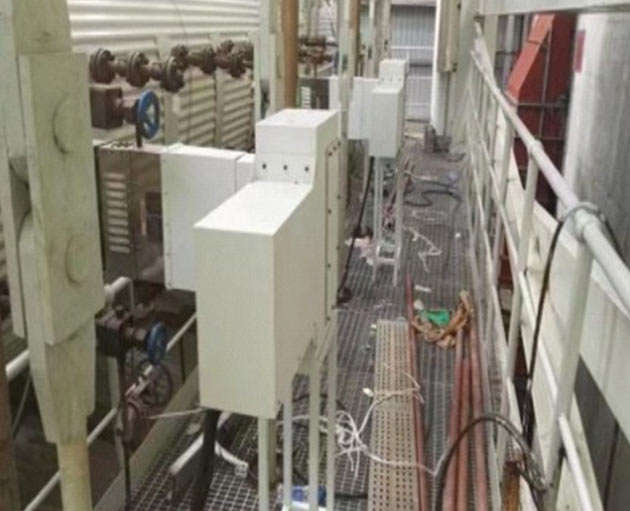

18.Includes a fully enclosed dust proof hood between the water level gauge and the camera and the corresponding mounting bracket
19. All-weather hood with built-in LED lights
System characteristics:

1.Camera obscure design, meet all-weather monitoring.
2.Full sealing design,with good dust proof, waterproof and corrosion resistance.
3.High temperature curing processing,not need to cooling.
4.Wide dynamic range,high degree of color reduction.

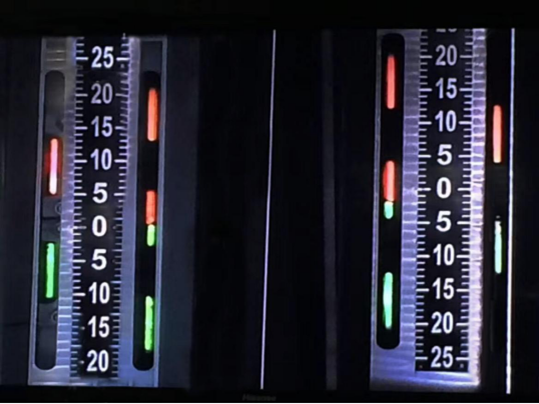

5.Double-picture synthetic display,real-time monitor both sides of the drum water level.
6.24-hours indiscriminate high-resolution imaging,is not affected by external light change.

Technical parameters:

1. Resolution:1920*1080                                              2. Zoom:(electronic zoom 3.6-78 ) 27 x optical zoom            3.Temperature environment:-10℃～70℃
4.Environment humidity:≤90%( 25℃ )
5.Lens aperture: electric remote control or manual control
6.Signal Noise Ratio:56db
7.Colour filter device: can choose red, yellow to filter or panchromatic filtration

Typical applications

1. Thermal generator set subcritical boiler
2.Cogeneration boiler
3.Gas power generation boiler

Dimension:

1. Overall dimension of the black box: 1600×700×300mm (L*W*H)

2. Control box size: 400×500×250mm (W*H*T)
