Product name:

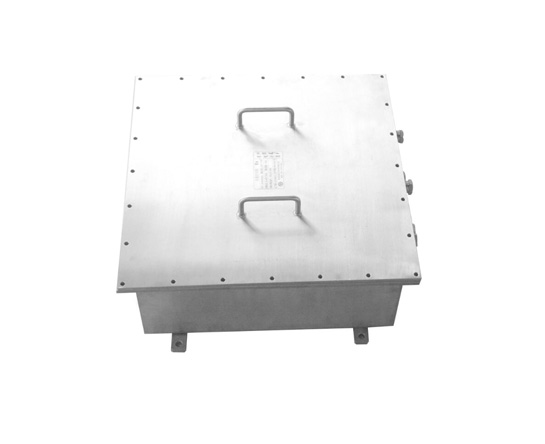

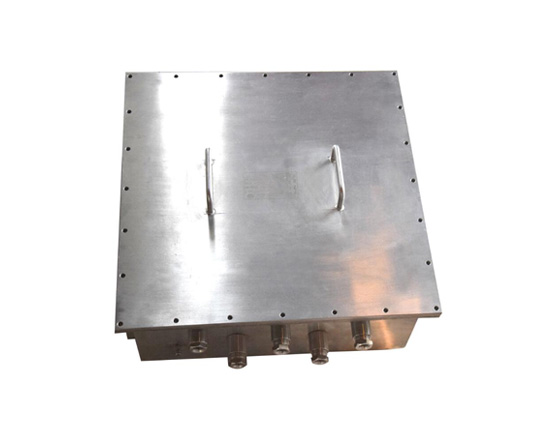

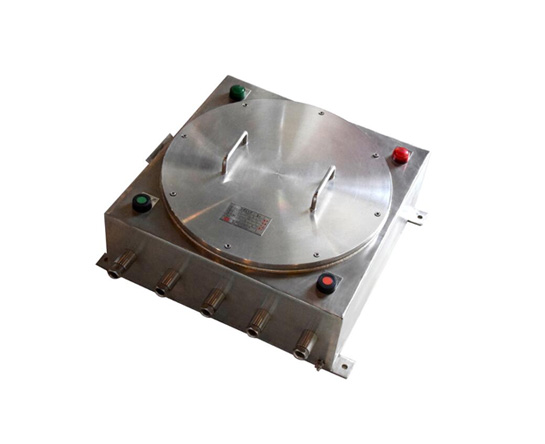

Blast-proof control cabinet
Product model:
LM-Bx650Ex 220VAC 10A
Product name:
Blast-proof control cabinet
Product model:
LM-Bx650Ex 220VAC 10A
Detailed description:
1.stainless steel material
2.Can install other electrical device
3.With six cable outlet
4.Protection level IP68
5.Can be working all day and install indoor or outdoor
6. Stainless steel enclosures provide strong protection and are widely used in environments with flammable and explosive gases
| Ex-Mark | Exd IIC T6 Gb |
| Input voltage | 220VAC |
| Input voltage range | ±10% |
| Working current | ＜300mA |
| Material | Stainless steel 304 or 316L |
| Protection grade | Ip68 |
| Internal available space | 240(L) x 210(W) x 100(H) mm |
| N.W | 15.8Kg / 12Kg |
| G.W | 19Kg / 15Kg |
| Number of round holes | 6 |
| Hole specification | G-3/4" |
| Installation | Wall mounting, base, fixing bracket. |
