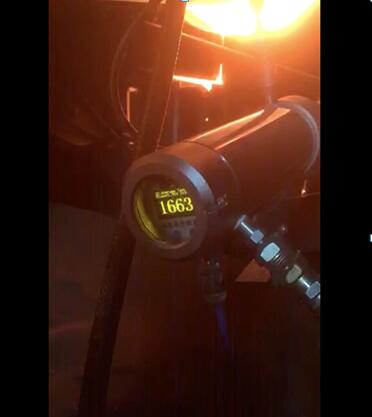

1.Temperature measuring probe

The temperature probe is a non-contact temperature measurement by receiving infrared radiation from the measured body. Temperature measuring probe of the sensor for temperature information of the object to be tested for rapid response, processed output general or special electrical signals, and can according to the demands of actual parameters Settings, can be in a very short period of time to accurate measurement of the temperature of the measured target, especially suitable for hard-to-reach or moving objects. The temperature probe has high temperature resistance, corrosion resistance and other protective functions, and can adapt to various dangerous and complex working conditions on site.
The temperature measuring probe can be equipped with a set of aiming device, which can directly aim measuring block or measuring point, and large area of measured objects can be without aiming device. For small measured objects and longer measured distances, the optional laser aiming lamp aims precisely at the measured object.

2.Infrared temperature measurement probe parameters

Temperature resolution: 1℃
Distance coefficient: 47∶1
Temperature measurement range: 0℃ ~ 1300℃ Response time: 100ms
Spectral response: 5.14 m

accuracy：1.0% measured value (℃)

Repeatability: 0.5% measured value (℃)
Shot rate: 0.1 ~ 1.00

Power supply: 24VDC ±25%

Output:4MA～20MA/500Ω

Output insulation: 500V External dimension: 125mm (length) ×40mm (diameter)
Ambient temperature: 0℃ ~ +70℃

Ambient humidity: ≤90%

N.W:450G
