Product introduce:

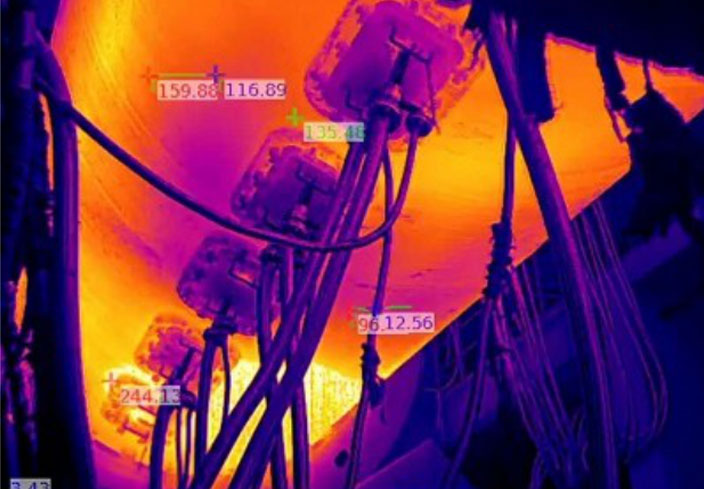

1. The temperature of each point on the furnace wall is measured

2. When the measured temperature value is higher than the set alarm value, the back-end software can trigger the alarm device and the back-end software of the thermal imager and record the alarm information at the same time

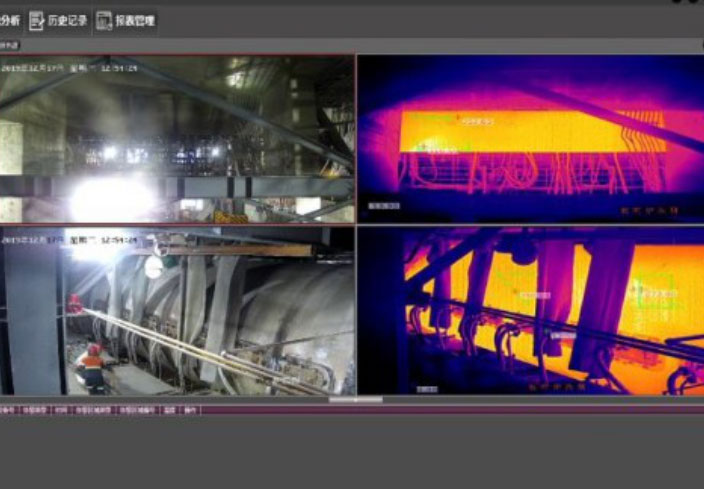

3.Operators can clearly see the temperature of the measured object and the video image of the whole rotary kiln on the monitor, so as to nip the potential risk of furnace wall damage in the bud and ensure the production safety of rotary kiln smelting

4. The new generation of explosion-proof monitoring equipment, it USES more advanced manufacturing technology, relying on mature quality management system as a guarantee, so that the product quality and performance in the same type of products in a leading position

5. It can be used alone in the environment with inflammable and explosive gas and combustible dust, and cooperate with all kinds of explosion-proof electric cradle head to achieve the purpose of monitoring the site

6. The thermal imager shield can be installed with a fixed focus or zoom lens, or an integrated thermal imager can be installed

7.Under the temperature of -45℃~60℃ for a long time stable operation

8. The window is made of special toughened glass, which ensures the picture quality is clear

9.With 2 outlet holes, and explosion-proof flexible pipe or armored cable can be used for explosion-proof electrical connection

10.Optional low temperature automatic heating function

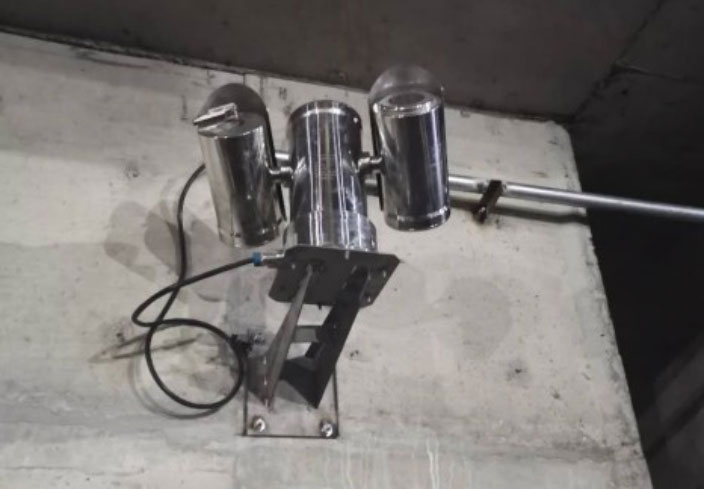

11.Easy installation, simple maintenance, you can choose electric head, semi-fixed head, fixed bracket, base, column, tower installation

Product Features:

1. Two-factor certification, suitable for a variety of environments

2. made of stainless steel materials
3.The thermographic window with prime or zoom lens can be installed

3. With solid tempered flat glass
4. 2 outlet holes in the rear of the shield and one cooling purge is added
5. Indoor and outdoor installation, all-weather use

Electrical Specifications:

1. Input voltage 220VAC/24VAC/12VDC, operating current ≤ 0.3a

2. according to the thermograph specification

3. When the 220VAC/24VAC/12VDC heater (optional) is lower than -10℃±5℃,

4. opening power consumption ≤20W (including heating)
5. Electrical connection 2 socket for power input/output 4 socket for lens control input/output
6. 2 socket for heater power input/output

Certification :

1. Protective mark Exd Ⅱ BT5 / DIP A20 TA, T6
2. Protection level IP68

Mechanical Specifications:

1. Stainless steel 304 or 316L

2.  window thickness of 8mm Windows area Φ 66 mm

3. shipping weight 6.7 Kg / 9 Kg in weight
4. Number of outlet holes 2
5. Output hole thread specification G-3/4"
