Product name:
Two combustion Chambers Two-color infrared temperature measuring system
Product model:
LM-CS2000
Product name:
Two combustion Chambers Two-color infrared temperature measuring system
Product model:
LM-CS2000
Product introduce:
1. Wide range of temperature measurement, 600℃ ~ 1800℃
2. High measurement accuracy, ±0.5% FS
3. Large distance coefficient, up to 400:1(100:1)
4. Small target measurement, can accurately measure
5. the minimum 2mm target temperature
6. Fast response, up to 20ms
7. Instantaneous value, maximum value and average value are three ways of temperature measurement
8.4MA ~ 20MA output, can be directly connected with standard digital display table, LED large-screen display, PLC, etc
9.Isolated RS485 digital output can form a network in which up to 32 temperature measuring instruments can be accessed to provide communication protocols and Demo software to facilitate customer secondary development

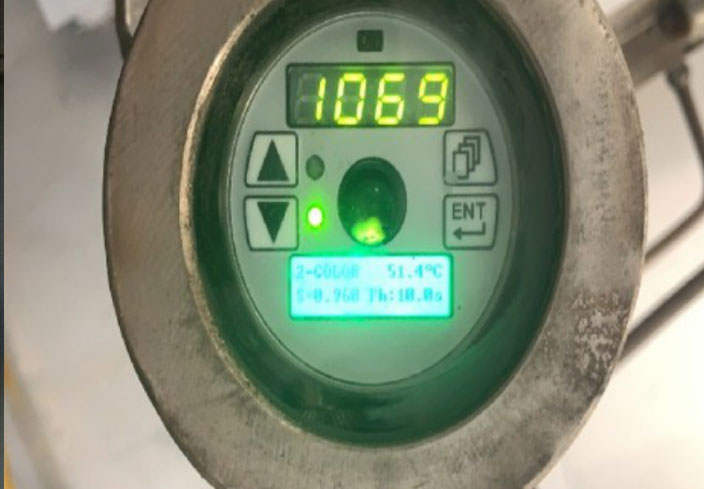

10.High brightness LED display, suitable for industrial field use
11. Coaxial laser aiming, easy to use, high accuracy
12. Telescope visual aim, clear, intuitive
Technical Indicator:
1. Analog output: A: 0V ~ 5V B: 4MA ~ 20MA
2. Temperature measurement range: 600℃ ~ 1800℃
3. Measurement accuracy: ±0.5% FS
4. Repeat accuracy: ±0.3% FS or ±1℃
5. Response time: ≤ 50ms, the fastest up to 20ms
6. Resolution: display temperature resolution 1C
Temperature measurement parameters:
1. RS485 output temperature resolution: 1C
2. Current output temperature resolution: 1C
3. Shooting rate: adjustable from 0.10 ~ 1.00, step size: 0.01
4. Temperature measurement method: instantaneous value (TEM), maximum value (MAX), average value (AVG)
5. Time interval: 1 ~ 30 seconds step length: 1 second
Optical parameter:
1. Operating band: 2.6 m
2. Aiming method: coaxial laser aiming or telescope aiming
3. Distance coefficient: 400:1 (100:1)
4. Power source: 24V DC ±10%, 100MA
5. Signal output: Analog current output: 4MA~20MA
6. RS485 digital output: Baud rate: 9600, 1 start bit, 8 data bits, no parity, 1 stop bit
Electric parameter:
- 10 ℃ ~ 60 ℃
2. Use air cooling up to 100℃
3. Use water cooling up to 150℃
4. Use thermal protective cases up to 200℃
5. Storage temperature: -20 ℃ ~ 80℃
6. Protection level: IP65
7. Weight: 0.5 kg
8. Inch: diameter: 50mm, length: 167mm
