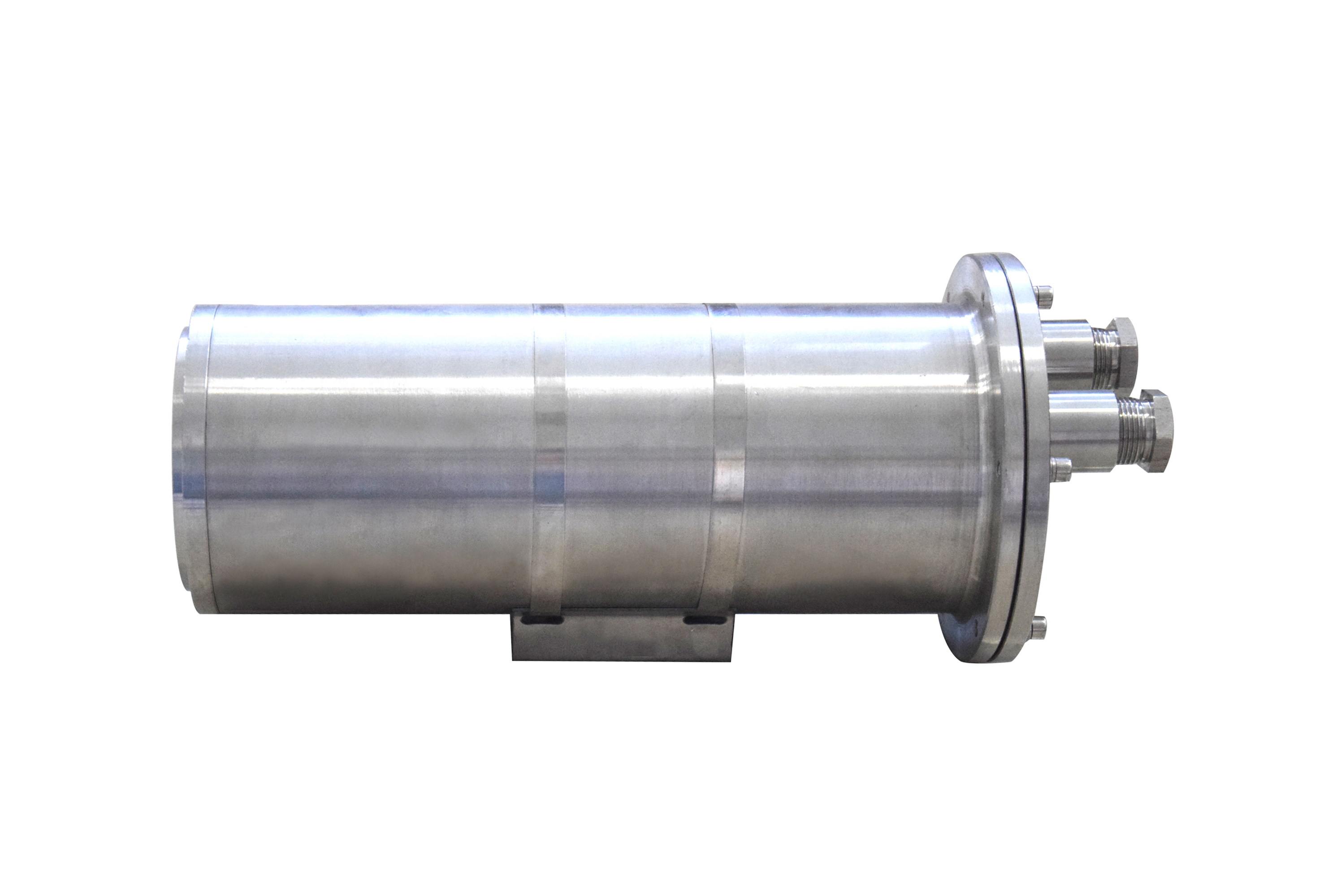

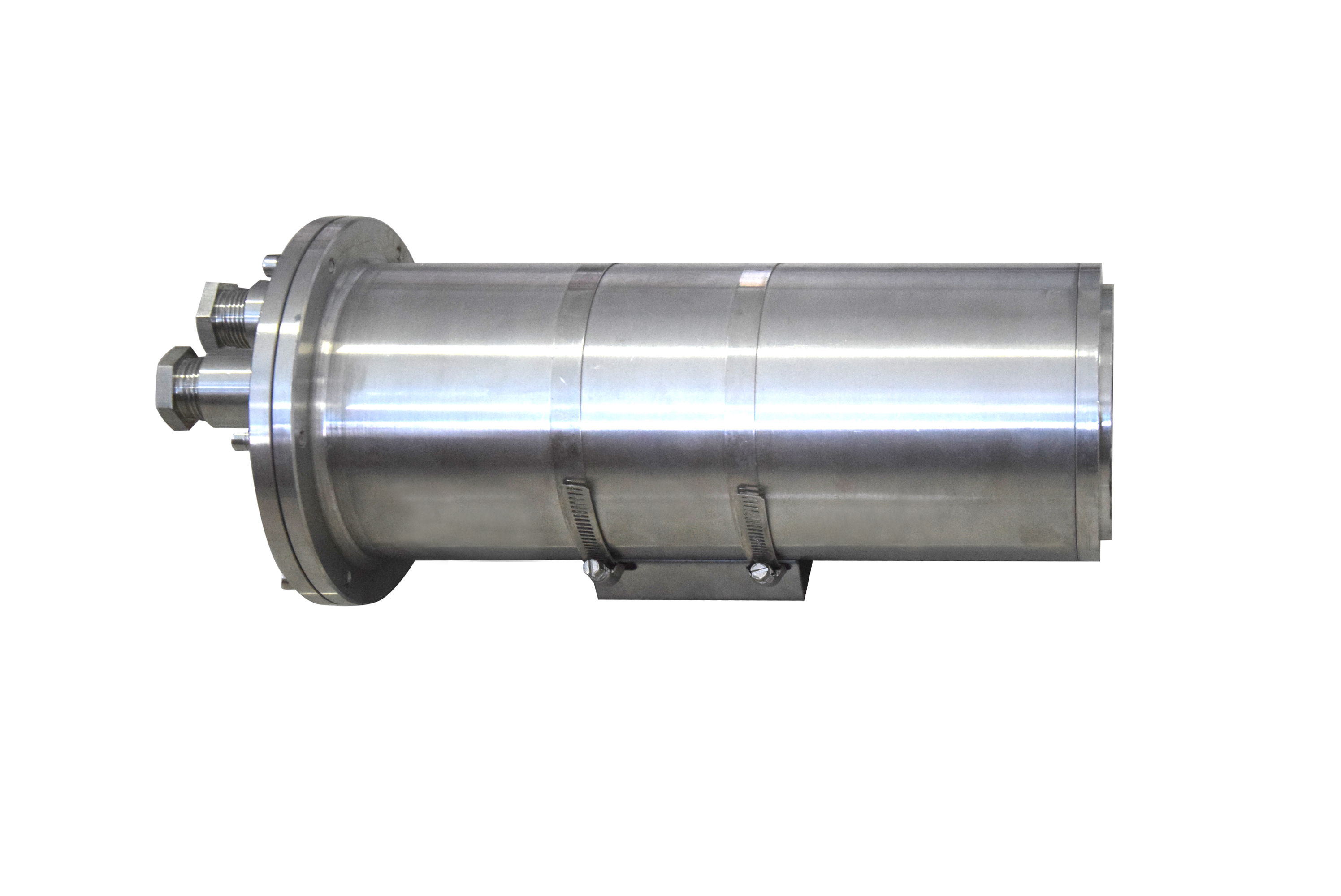

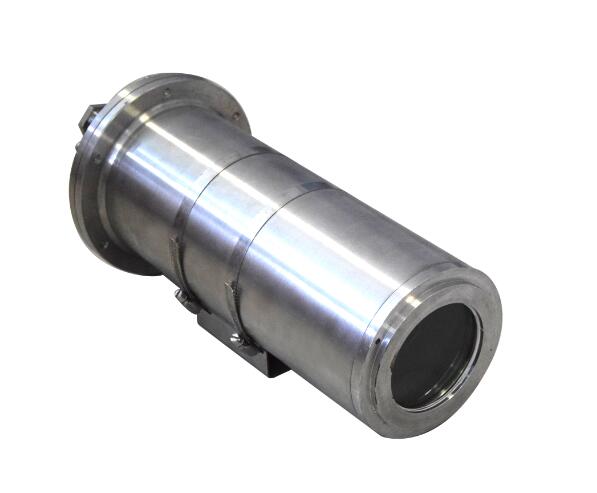

Explosion-proof lamp cover
Explosion-proof lamp cover
Explosion-proof lamp cover
Explosion-proof lamp cover

Product name:

Explosion-proof lamp cover

Product model:

LM-HW180Ex 220VAC

Hotline:+86-18112302260

Email:lmgd800@163.com

contact us

Product introduction:

1.Provides excellent surveillance for infrared sensitive cameras in extremely low visibility environments

2. Can identify and judge the ambient light intensity. Manually adjust the sensing range of infrared light on or off and default setting value is 5Lux.
3.The projection window is made of special tempered flat glass to ensure the durability and projection efficiency of infrared light
4.The equipment can stably work for a long time during the temperature of -45℃~+60℃.

5. High quality INFRARED led with high light flow and long service life
6. Infrared wave length 830nm, slight red burst
6.Automatically open or close according to the environment light
7.Shell material is stainless steel.
8.Work with explosion-proof head and camera
9.Can be working all day and install indoor or outdoor

Ex-markExd IIT6 GbElectrical Specifications
MaterialStainless steel 304 or 316LInput voltage100VAC~240VAC, 50/60Hz
Protection GradeIP68Working current<500mA
N.W/G.W4.4/6KGProjection distance100m
Conduit hole qty1Projection Angle45°
Hole thread specificationsG-3/4"wavelength830nm
Install Special base or bracket for camera or cradle headPower consumption20W


electrical connection2 core power cable
