Product introduction:1.Suitable for all kinds of kiln tail smoke room and kiln tail decomposing furnace.

It can constantly monitor the temperature accurately.
Don't contact with measured object, without abrasion, free maintenance.
2. Measure temperature with high accuracy and fast speed.
3. Special wavelength, prevent the interference of the smoke.
4. Laconic structure, easy to mounting.
5.Use special high temperature resistant material,with high strength and corrosion resistant.
6. Laser collimation，accurate positioning.
7. Regular clean crust automatically, keep the temperature accuracy.
8. Use high- temperature rodless cylinder，with good reliability.
9. In the central control room, can control the equipment to entry and exit.
10. Without maintenance, save a lot of production time and manpower.
11. Three years warranty and has the advantages of being cheap.

Technical parameters:1. Temperature resolution:1℃
2. Distance coefficient:150:1
3. Temperature Range:0℃～1300℃
4. Response time:100ms
5. Spectral response:5.14μm
6. Precision:1.0% measured value(℃)
7. Repeatability:0.5%measured value(℃)
8. Emissivity:0.1～1.00
9. Power supply:24VDC±25%
10. Export:4MA～20MA/500Ω
11. Output insulation:500V
12. Environment temperature:-20℃～+75℃
13. Environment humidity:≤90%

Compressed air:1. Air pipe port ：G1/4”
2. Work pressure:0.2MPa～0.8MPa
3. Maximum moment:15(nm)
4. Maximum load:300(n)
5. Minimum flow:0.3M³/min

Working condition temperature:1. Environment temperature:-20℃～75℃
2. Environment humidity:≤90%
3. Smoke room temperature:≤1400℃

Dimension:1. Automatically exit device:Φ115(diameter)*1560(length)(unit:mm)

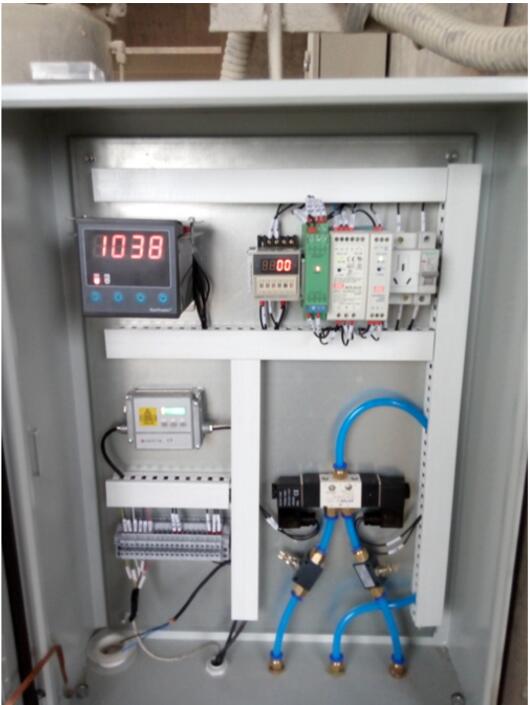

2. Control box:500*700*200mm (W*H*D)

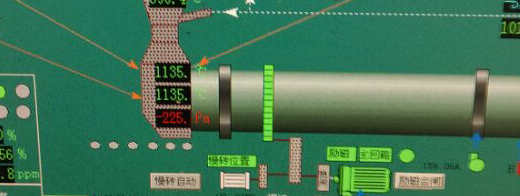

3. 4MA-20MA output connect with DSC

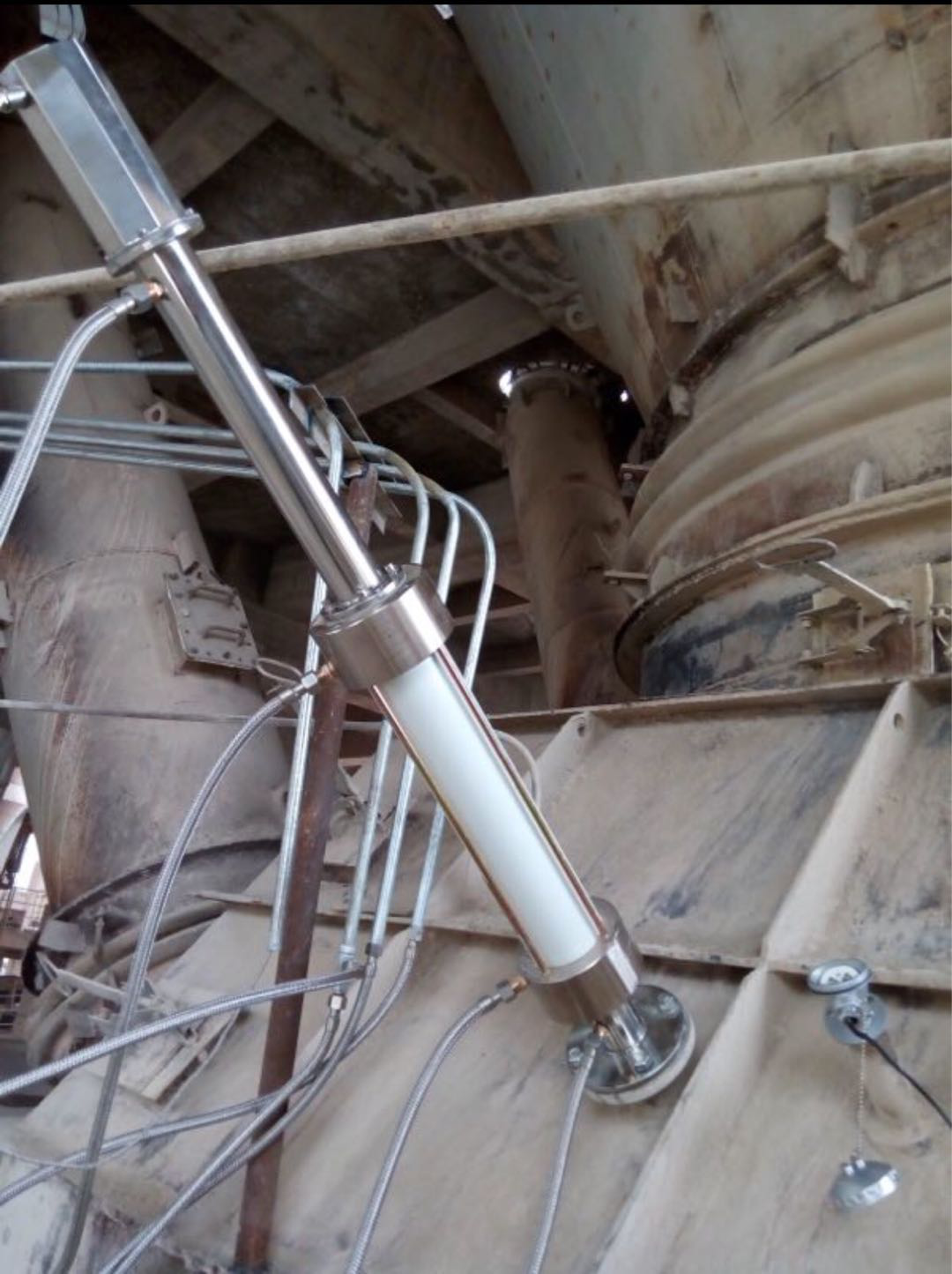

4. Installation diagram(see figure)
5. Open pore requirement（see figure）
