Product introduction:

1.Using stainless steel materials, with good corrosion resistance.

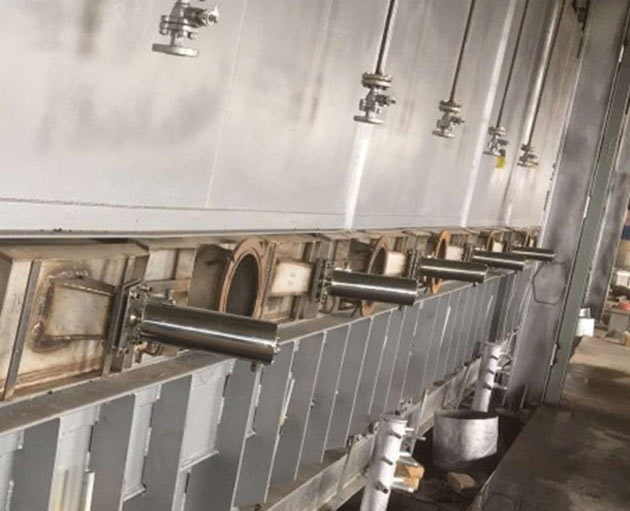

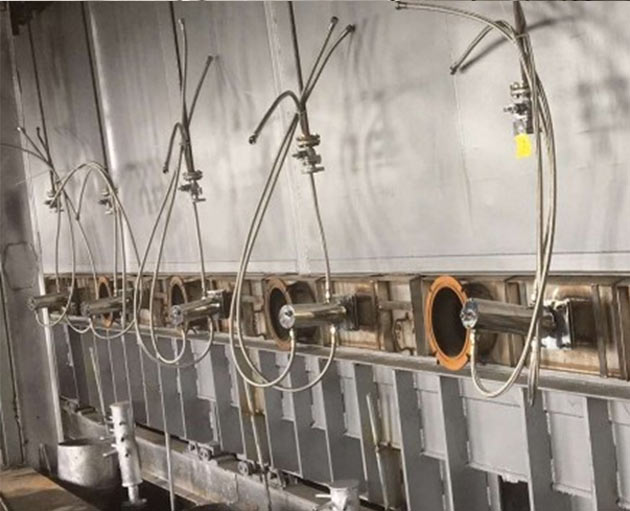

2.The equipment fixed in the furnace wall directly and it can block gas.
3.With less gas, environmental protection and energy saving.
4.Special dust proof design, the lens does not gather dust.
5.Special water cooling, under the condition of poor water quality can normally use.
6.Equipped with stainless steel universal joint, it can adjust image in any direction within 20 degree.
7.The high temperature pinhole zoom lens is ourselves develop and product, horizontal resolution is greater than 2.0 million pixels, under no cooling condition, it can withstand 150 degree celsius, angle of field can arbitrary adjusted between 18 to 35 degree.

8.Lens definition:
9.horizontal resolution is greater than 2.0 million pixels.

10.Lens variable focusing
11.F4-F20 continuously adjustable

Compressed air:

1.Total intake pipe: G1/2”
2.Inlet pressure: ≥0.1Mpa
3.Inlet temperature: ≤35°C
4.Minimum flow: 0.1m³/min

Cooling water:

1.Total intake pipe: G1/2”
2.Inlet pressure: 0.2Mpa~0.5Mpa
3.Minimum flow: ≥5L/min
4.Inlet temperature: ≤35°C

Working condition temperature:

1.Environmental temperature: -20°C～75°C
2.Furnace temperature: ≦1500°C

Protective level: IP65
