Product name:
Board width flow controller system
Product model:
LM-BK200
Product name:
Board width flow controller system
Product model:
LM-BK200
Product introduction:
1.Using stainless steel materials, with good corrosion resistance.

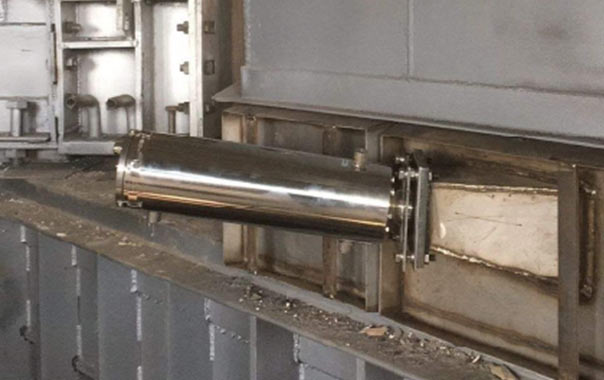

2.The equipment fixed in the furnace wall directly and it can block gas.
3.With less gas, protect environment and save energy.
4.Special dust proof design, the lens does not gather dust.
5.Special water cooling, normally use under the poor condition water.
6.Equipped with stainless steel universal joint, it can adjust image in any direction within 20 degree.
7.The high temperature pin hole zoom lens is ourselves develop and product, horizontal resolution is greater than 2.0 million pixels, under no cooling condition, it can with stand 150 degree celsius, angle of field can arbitrary adjusted between 18 to 35 degree.
8. Lens definition:
9.horizontal resolution is greater than 2.0million pixels.
10.Lens variable focusing:
11.F4-F20 continuously adjustable
Compressed air:
1.Total intake pipe: G1/2”
2.Inlet pressure: ≥0.1Mpa
3.Inlet temperature: ≤35°C
4.Minimum flow: 0.1m³/min
Cooling water:
1.Total intake pipe: G1/2”
2.Inlet pressure: 0.2Mpa~0.5Mpa
3.Minimum flow: ≥5L/min
4.Inlet temperature: ≤35°C
Working condition temperature:
1.Environmental temperature: -20°C~75°C
2.Furnace temperature: ≦1700°C
Protection Level: IP65
