Product name:

Image level meter control system

Product model:

LM-YM100

Hotline:+86-18112302260

Email:lmgd800@163.com

contact us

Product introduction:

Apply to float glass line, calendering line and other types glass melter.

Main function:

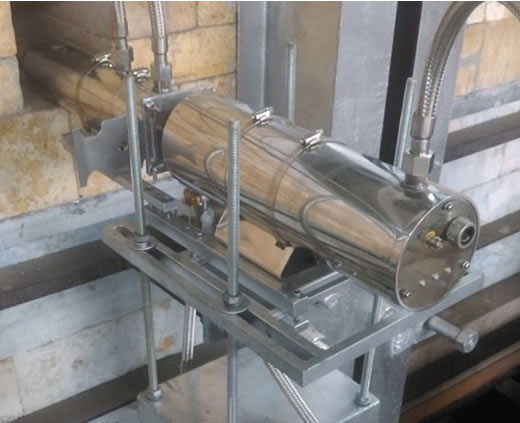

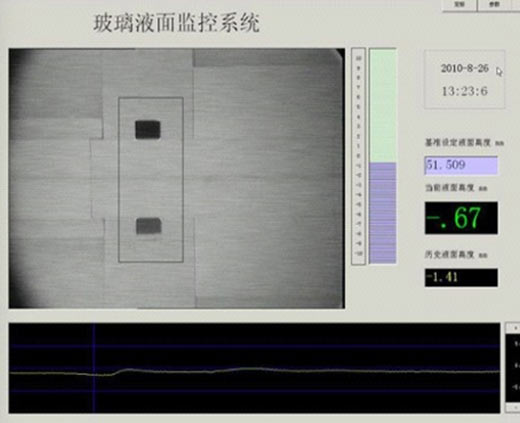

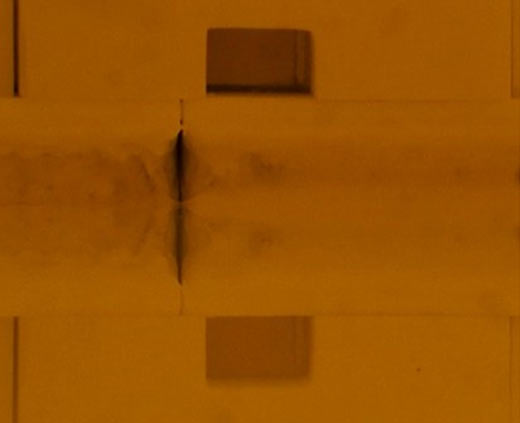

The system using non-contact measuring technique, using machine vision technology and control technology of computer to measure the relative height of the glass level. The system is simple, no mechanical part, simple camera cover. The system output two channels signal (4MA~20MA), one channel signal is control signal to the motor controller of batch feeder, change the flow of batch feeding to get the ideal height of glass level; another channel signal is height signal of glass level to DCS system. Keep historic data of the glass plate width to analyse productive process. The system have automatic function and manual function and it can be arbitrarily choose.

Technical parameters:

1. Lens definition: horizontal resolution is greater than 2.0 million pixels.
2. Lens variable focusing: F60-F180 continuously adjustable.

Compressed air:

1.Total intake pipe: G3/4”
2.Connecting pipe: 2-G1/2”(increase stop valve)
3.Inlet pressure: 0.3MPa~0.7MPa
4.Inlet temperature: ≤35°C
5.Minimum flow: 0.3M³/min

Cooling water:

1.Total intake pipe: G1/2”
2.Connecting pipe: G1/2”
3.Inlet pressure: 0.2MPa~0.5MPa
4.Minimum flow: 30L/min
5.Inlet temperature: ≤35°C

Working condition temperature:
1.Control box: -20°C~75°C
2.Furnace temperature: ≤1700°C

Dimension:

1. Device: 800*280*600mm

2. Control box: 300*400*200mm(W*H*T)
